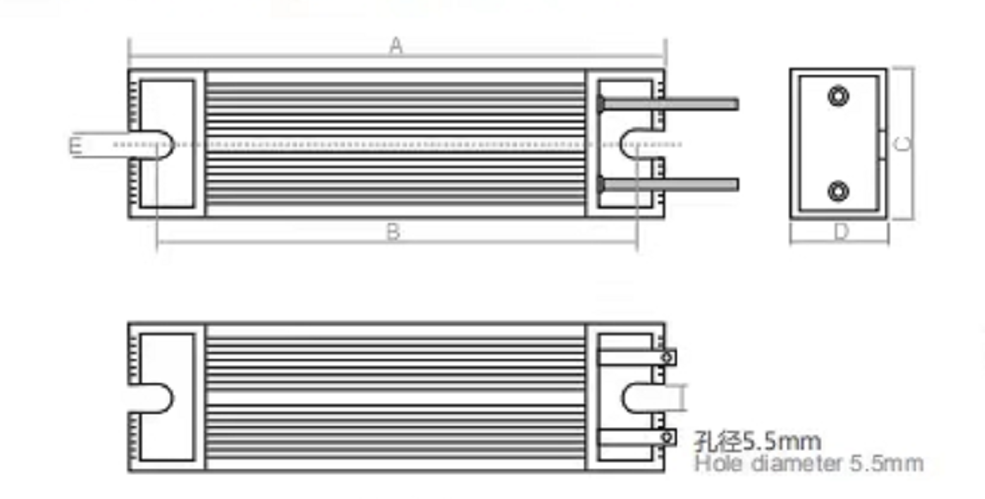

| SANO 三锘再生電阻規格型號 | 配線直徑---引線長度---安裝孔 | 安裝尺寸(長*寬*高) |
| SANO-50-10 (50W 10Ω) | 1.5mm ---300mm ---5.5mm | 115mm*40mm*20mm |
| SANO-100-10 (100W 10Ω) | 1.5mm ---300mm ---5.5mm | 115mm*40mm*20mm |
| SANO-150-10 (150W 10Ω) | 1.5mm ---300mm ---5.5mm | 185mm*40mm*20mm |
| SANO-200-10 (200W 10Ω) | 2.0mm ---300mm ---5.5mm | 165mm*60mm*30mm |
| SANO-300-10 (300W 10Ω） | 2.0mm ---300mm ---5.5mm | 215mm*60mm*30mm |
| SANO-400-10 (400W 10Ω) | 2.0mm ---300mm ---5.5mm | 245mm*60mm*30mm |
| SANO-500-10 (500W 10Ω) | 2.0mm ---300mm ---5.5mm | 245mm*60mm*30mm |
| SANO-800-10 (800W 10Ω) | 2.0mm ---300mm ---5.5mm | 330mm*60mm*30mm |
| SANO-1000-10 (1000W 10Ω) | 2.0mm ---300mm ---5.5mm | 400mm*60mm*30mm |
| SANO-1500-10 (1500W 10Ω) | 4.0mm ---500mm ---5.5mm | 420mm*30mm*60mm |
| SANO-2000-10 (2000W 10Ω) | 4.0mm ---500mm ---5.5mm | 450mm*50mm*105mm |
| SANO-2500-10 (2500W 10Ω) | 4.0mm ---500mm ---5.5mm | 550mm*50mm*105mm |
| SANO-3000-10 (3000W 10Ω) | 4.0mm ---500mm ---5.5mm | 550mm*50mm*105mm |
| SANO-4000-10 (4000W 10Ω) | 4.0mm ---500mm ---5.5mm | 550mm*50mm*105mm |
| SANO-4500-10 (4500W 10Ω) | 4.0mm ---500mm ---5.5mm | 550mm*50mm*105mm |
| SANO-5000-10 (5000W 10Ω) | 4.0mm ---500mm ---5.5mm | 550mm*50mm*105mm |
| SANO-6000-10 (6000W 10Ω) | 4.0mm ---500mm ---5.5mm | 700mm*50mm*105mm |
|
|

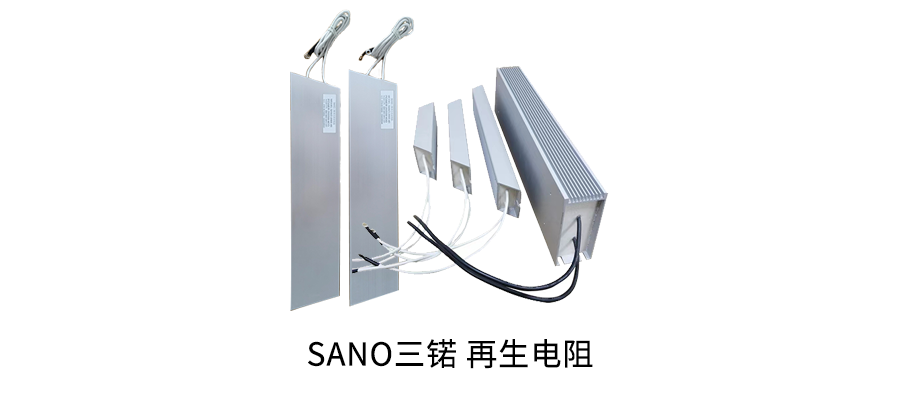

1.產品名稱：再生電阻，也稱制動電阻。
2.阻值范圍：1Ω-10000Ω
3.電壓范圍：500V-2000V
4.耐壓測試：AC2500V-4500V/min 50/60HZ
5.外觀形式：鋁殼，耐高溫線引出。
6.工作環境：額定功率（-65-+68）
7.應用范圍：伺服系統、變頻器系統、電梯系統、電子電力系統、船舶自動化設備等用電設備。
8.參數選型均以10歐姆為例，實際可以按用戶需求定制任意電阻值，例如：SANO-1000-57（1000W 57Ω）
